| Swage Nipple Specification: | |||||||||||
| Size/尺寸 | 1/8″~4″ (DN6~DN100) | ||||||||||
| Class/壓力等級 | 2000 LBS, 3000 LBS, 6000 LBS （Sch40/STD、Sch80/XS、 Sch160/XXS） | ||||||||||
| Type/連接形式 | 螺紋連接、Threads: American National Standard Taper Pipe Threads, NPT(ANSI/ASME B1.20.1-1983), | ||||||||||
| 對焊連接、Buttweld | |||||||||||
| 平端，Plain | |||||||||||
| Surface Treatment/表麵處理 | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Soldering,Darken, | ||||||||||
| 熱浸鍍鋅，環氧樹脂和FBE塗層，電拋光，噴砂，發黑 | |||||||||||
| Materal/材質 | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel | ||||||||||
| 不鏽鋼、合金鋼、雙相鋼、低溫鋼、碳鋼、鎳基合金 | |||||||||||
| Manufacturing process/製造工藝 | Cutting, Heat treatment, Forging, Machining, | ||||||||||
| 鋸切、熱處理、模鍛、機加工 | |||||||||||
| Manufacturing Standards/製造標準 | MSS SP-95 | ||||||||||
| Swage Nipple Material Grades: | |||||||||||
| Stainless Steel/不鏽鋼 | ASTM A182 F304, 304L, 316, 316L,310S, 316Ti,317L | ||||||||||
| Duplex & Super Duplex Steel/雙相鋼 | ASTM A 182 – F51, F53, F55, S31803, S32205, S32550, S31254, SMO254, S32750, S32760, S32950. | ||||||||||
| Carbon Steel/碳鋼 | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 | ||||||||||
| Alloy Steel/合金鋼 | ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 | ||||||||||
| Copper Alloy Steel/銅合金 | Copper Alloy Steel Forged Threaded 90 Deg Elbow : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) | ||||||||||
| Nickel Alloy/鎳合金 | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) | ||||||||||
| Swage Nipple Dimesions: | |||||||||||
 |
 |
||||||||||

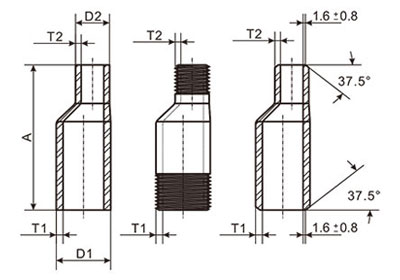

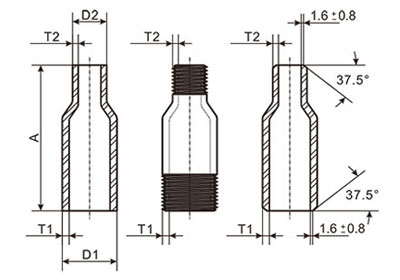

| Concentric Swage Nipple（同心漸縮管結構圖） | Eccentric Swage Nipple（偏心漸縮管結構圖） | ||||||||||
| Nom. | Outside Diameter | End | Wall Thickness | ||||||||
| Pipe | Large | Small | To | T1 | T2 | ||||||
| Size | End | End | End | Sch40 | Sch80 | Sch160 | XXS | Sch40 | Sch80 | Sch160 | XXS |
| (NPS) | D1 | D2 | “A” | (STD) | (XS) | (STD) | (XS) | ||||
| 1/4"×1/8" | 13.7 | 10.3 | 57 | 2.2 | 3 | 3.7 | 6.1 | 1.7 | 2.4 | --- | --- |
| 3/8"×1/8" | 17.1 | 10.3 | 64 | 2.3 | 3.2 | 4 | 6.4 | 1.7 | 2.4 | --- | --- |
| 3/8"×1/4" | 17.1 | 13.7 | 64 | 2.3 | 3.2 | 4 | 6.4 | 2.2 | 3 | --- | --- |
| 1/2"×1/8" | 21.3 | 10.3 | 70 | 2.8 | 3.7 | 4.8 | 7.5 | 1.7 | 2.4 | --- | --- |
| 1/2"×1/4" | 21.3 | 13.7 | 70 | 2.8 | 3.7 | 4.8 | 7.5 | 2.2 | 3 | --- | --- |
| 1/2"×3/8" | 21.3 | 17.1 | 70 | 2.8 | 3.7 | 4.8 | 7.5 | 2.3 | 3.2 | --- | --- |
| 3/4"×1/8" | 26.7 | 10.3 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 1.7 | 2.4 | --- | --- |
| 3/4"×1/4" | 26.7 | 13.7 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 2.2 | 3 | --- | --- |
| 3/4"×3/8" | 26.7 | 17.1 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 2.3 | 3.2 | --- | --- |
| 3/4"×1/2" | 26.7 | 21.3 | 76 | 2.9 | 3.9 | 5.6 | 7.8 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1"×1/8" | 33.4 | 10.3 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 1.7 | 2.4 | --- | --- |
| 1"×1/4" | 33.4 | 13.7 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.2 | 3 | --- | --- |
| 1"×3/8" | 33.4 | 17.1 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.3 | 3.2 | --- | --- |
| 1"×1/2" | 33.4 | 21.3 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1"×3/4" | 33.4 | 26.7 | 89 | 3.4 | 4.5 | 6.4 | 9.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 1-1/4"×1/8" | 42.2 | 10.3 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 1.7 | 2.4 | --- | --- |
| 1-1/4"×1/4" | 42.2 | 13.7 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.2 | 3 | --- | --- |
| 1-1/4"×3/8" | 42.2 | 17.1 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.3 | 3.2 | --- | --- |
| 1-1/4"×1/2" | 42.2 | 21.3 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1-1/4"×3/4" | 42.2 | 26.7 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 2.9 | 3.9 | 5.6 | 7.8 |
| 1-1/4"×1" | 42.2 | 33.4 | 102 | 3.6 | 4.9 | 6.4 | 9.7 | 3.4 | 4.5 | 6.4 | 9.1 |
| 1-1/2"×1/8" | 48.3 | 10.3 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 1.7 | 2.4 | --- | --- |
| 1-1/2"×1/4" | 48.3 | 13.7 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.2 | 3 | --- | --- |
| 1-1/2"×3/8" | 48.3 | 17.1 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.3 | 3.2 | --- | --- |
| 1-1/2"×1/2" | 48.3 | 21.3 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.8 | 3.7 | 4.8 | 7.5 |
| 1.1/2"×3/4" | 48.3 | 26.7 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 2.9 | 3.9 | 5.6 | 7.8 |
| 1-1/2"×1" | 48.3 | 33.4 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 3.4 | 4.5 | 6.4 | 9.1 |
| 1-1/2"×1-1/4" | 48.3 | 42.2 | 114 | 3.7 | 5.1 | 7.1 | 10.2 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2"×1/8" | 60.3 | 10.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 1.7 | 2.4 | --- | --- |
| 2"×1/4" | 60.3 | 13.7 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.2 | 3 | --- | --- |
| 2"×3/8" | 60.3 | 17.1 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.3 | 3.2 | --- | --- |
| 2"×1/2" | 60.3 | 21.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.8 | 3.7 | 4.8 | 7.5 |
| 2"×3/4" | 60.3 | 26.7 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 2"×1" | 60.3 | 33.4 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.4 | 4.5 | 6.4 | 9.1 |
| 2"×1-1/4" | 60.3 | 42.2 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2"×1-1/2" | 60.3 | 48.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.7 | 5.1 | 7.1 | 10.2 |
| 2-1/2"×1/8" | 73 | 10.3 | 178 | 5.2 | 7 | 9.5 | 14 | 1.7 | 2.4 | --- | --- |
| 2-1/2"×1/4" | 73 | 13.7 | 178 | 5.2 | 7 | 9.5 | 14 | 2.2 | 3 | --- | --- |
| 2-1/2"×3/8" | 73 | 17.1 | 178 | 5.2 | 7 | 9.5 | 14 | 2.3 | 3.2 | --- | --- |
| 2-1/2"×1/2" | 73 | 21.3 | 178 | 5.2 | 7 | 9.5 | 14 | 2.8 | 3.7 | 4.8 | 7.5 |
| 2-1/2"×3/4" | 73 | 26.7 | 178 | 5.2 | 7 | 9.5 | 14 | 2.9 | 3.9 | 5.6 | 7.8 |
| 2-1/2"×1" | 73 | 33.4 | 178 | 5.2 | 7 | 9.5 | 14 | 3.4 | 4.5 | 6.4 | 9.1 |
| 2-1/2"×1-1/4" | 73 | 42.2 | 178 | 5.2 | 7 | 9.5 | 14 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2-1/2"×1-1/2" | 73 | 48.3 | 178 | 5.2 | 7 | 9.5 | 14 | 3.7 | 5.1 | 7.1 | 10.2 |
| 2-1/2"×2" | 73 | 60.3 | 178 | 5.2 | 7 | 9.5 | 14 | 3.9 | 5.5 | 8.7 | 11.1 |
| 3"×1/8" | 88.9 | 10.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 1.7 | 2.4 | 3.2 | 4.8 |
| 3"×1/4" | 88.9 | 13.7 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.2 | 3 | 3.7 | 6.1 |
| 3"×3/8" | 88.9 | 17.1 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.3 | 3.2 | 4 | 6.4 |
| 3"×1/2" | 88.9 | 21.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.8 | 3.7 | 4.8 | 7.5 |
| 3"×3/4" | 88.9 | 26.7 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.9 | 3.9 | 5.6 | 7.8 |
| 3"×1" | 88.9 | 33.4 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.4 | 4.5 | 6.4 | 9.1 |
| 3"×1-1/4" | 88.9 | 42.2 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.6 | 4.9 | 6.4 | 9.7 |
| 3"×1-1/2" | 88.9 | 48.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.7 | 5.1 | 7.1 | 10.2 |
| 3"×2" | 88.9 | 60.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.9 | 5.5 | 8.7 | 11.1 |
| 3"×2-1/2" | 88.9 | 73 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 5.2 | 7 | 9.5 | 14 |
| 3-1/2"×1/8" | 101.6 | 10.3 | 203 | 5.7 | 8.1 | --- | --- | 1.7 | 2.4 | --- | --- |
| 3-1/2"×1/4" | 101.6 | 13.7 | 203 | 5.7 | 8.1 | --- | --- | 2.2 | 3 | --- | --- |
| 3-1/2"×3/8" | 101.6 | 17.1 | 203 | 5.7 | 8.1 | --- | --- | 2.3 | 3.2 | --- | --- |
| 3-1/2"×1/2" | 101.6 | 21.3 | 203 | 5.7 | 8.1 | --- | --- | 2.8 | 3.7 | 4.8 | 7.5 |
| 3-1/2"×3/4" | 101.6 | 26.7 | 203 | 5.7 | 8.1 | --- | --- | 2.9 | 3.9 | 5.6 | 7.8 |
| 3-1/2"×1" | 101.6 | 33.4 | 203 | 5.7 | 8.1 | --- | --- | 3.4 | 4.5 | 6.4 | 9.1 |
| 3-1/2"×1-1/4" | 101.6 | 42.2 | 203 | 5.7 | 8.1 | --- | --- | 3.6 | 4.9 | 6.4 | 9.7 |
| 3-1/2"×1-1/2" | 101.6 | 48.3 | 203 | 5.7 | 8.1 | --- | --- | 3.7 | 5.1 | 7.1 | 10.2 |
| 3-1/2"×2" | 101.6 | 60.3 | 203 | 5.7 | 8.1 | --- | --- | 3.9 | 5.5 | 8.7 | 11.1 |
| 3-1/2"×2-1/2" | 101.6 | 73 | 203 | 5.7 | 8.1 | --- | --- | 5.2 | 7 | 9.5 | 14 |
| 3-1/2"×3" | 101.6 | 88.9 | 203 | 5.7 | 8.1 | --- | --- | 5.5 | 7.6 | 11.1 | 15.2 |
| 4"×1/4" | 114.3 | 13.7 | 229 | 6 | 8.6 | 13.5 | 17.1 | 2.2 | 3 | --- | --- |
| 4"×3/8" | 114.3 | 17.1 | 229 | 6 | 8.6 | 13.5 | 17.1 | 2.3 | 3.2 | --- | --- |
| 4"×1/2" | 114.3 | 21.3 | 229 | 6 | 8.6 | 13.5 | 17.1 | 2.8 | 3.7 | 4.8 | 7.5 |
| 4"×3/4" | 114.3 | 26.7 | 229 | 6 | 8.6 | 13.5 | 17.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 4"×1" | 114.3 | 33.4 | 229 | 6 | 8.6 | 13.5 | 17.1 | 3.4 | 4.5 | 6.4 | 9.1 |
| 4"×1-1/4" | 114.3 | 42.2 | 229 | 6 | 8.6 | 13.5 | 17.1 | 3.6 | 4.9 | 6.4 | 9.7 |
| 4"×1-1/2" | 114.3 | 48.3 | 229 | 6 | 8.6 | 13.5 | 17.1 | 3.7 | 5.1 | 7.1 | 10.2 |
| 4"×2" | 114.3 | 60.3 | 229 | 6 | 8.6 | 13.5 | 17.1 | 3.9 | 5.5 | 8.7 | 11.1 |
| 4"×2-1/2" | 114.3 | 73 | 229 | 6 | 8.6 | 13.5 | 17.1 | 5.2 | 7 | 9.5 | 14 |
| 4"×3" | 114.3 | 88.9 | 229 | 6 | 8.6 | 13.5 | 17.1 | 5.5 | 7.6 | 11.1 | 15.2 |
| 4"×3-1/2" | 114.3 | 101.6 | 229 | 6 | 8.6 | 13.5 | 17.1 | 5.7 | 8.1 | --- | --- |
| (1) Dimensions in Millimeters. | |||||||||||
| (2) Wall Thickness:T1 & T2 in accordance with ASME B36.10M | |||||||||||
| PBE:Plain Both Ends BBE:Bevel Both Ends TBE:Thread Both Ends | |||||||||||
| PSE:Plain Small End BSE:Bevel Small End TSE:Thread Small End | |||||||||||
| PLE:Plain Large End BLE:Bevel Large End TLE:Thread Large End |
| Nominal Pipe | Overall Length | Outside diameter at end | Wall Thickness (prior to threading or grooving) | ||||||||
| Size(inch) | (mm) | Square Cut Ends(mm) | Other End Connection(mm) | ||||||||
| 1/8”to 3/8” | ±1.5 | ±0.4 | ±0.8 | Not less than 87.5% | |||||||
| 0.8 | of nominal wall | ||||||||||
| 1/2”to 1-1/2” | ±1.5 | ±0.4 | ±1.5 | thickness | |||||||
| 0.8 | 0.8 | ||||||||||
| 2”to 2-1/2” | ±3.0 | ±0.8 | ±1.5 | ||||||||
| 0.8 | |||||||||||
| 3”to 4” | ±3.0 | ±0.8 | ±1.5 | ||||||||
| (1)Dimensions in Millimeters. | |||||||||||
| (2)Prior to threading or grooving |
